Front of House Tech

The Kurkimäki community centre space is equipped with sound and lighting systems suitable for most uses, including concerts and theatre performances.

For more information, contact:
Niklas Nyström, +358 50 343 4678, niklas@korttelitalo.com

See also our website for rental instructions and price list.

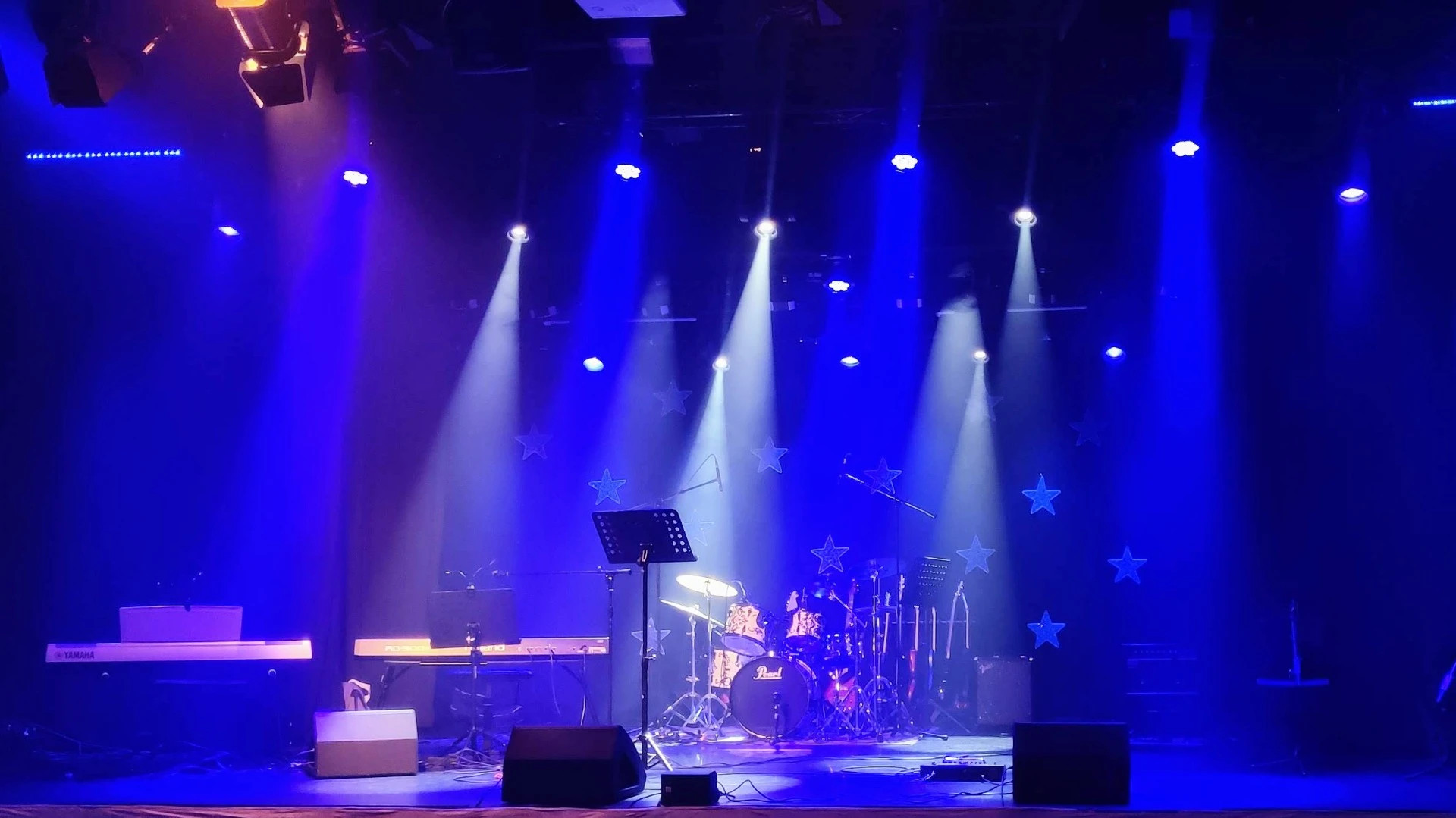

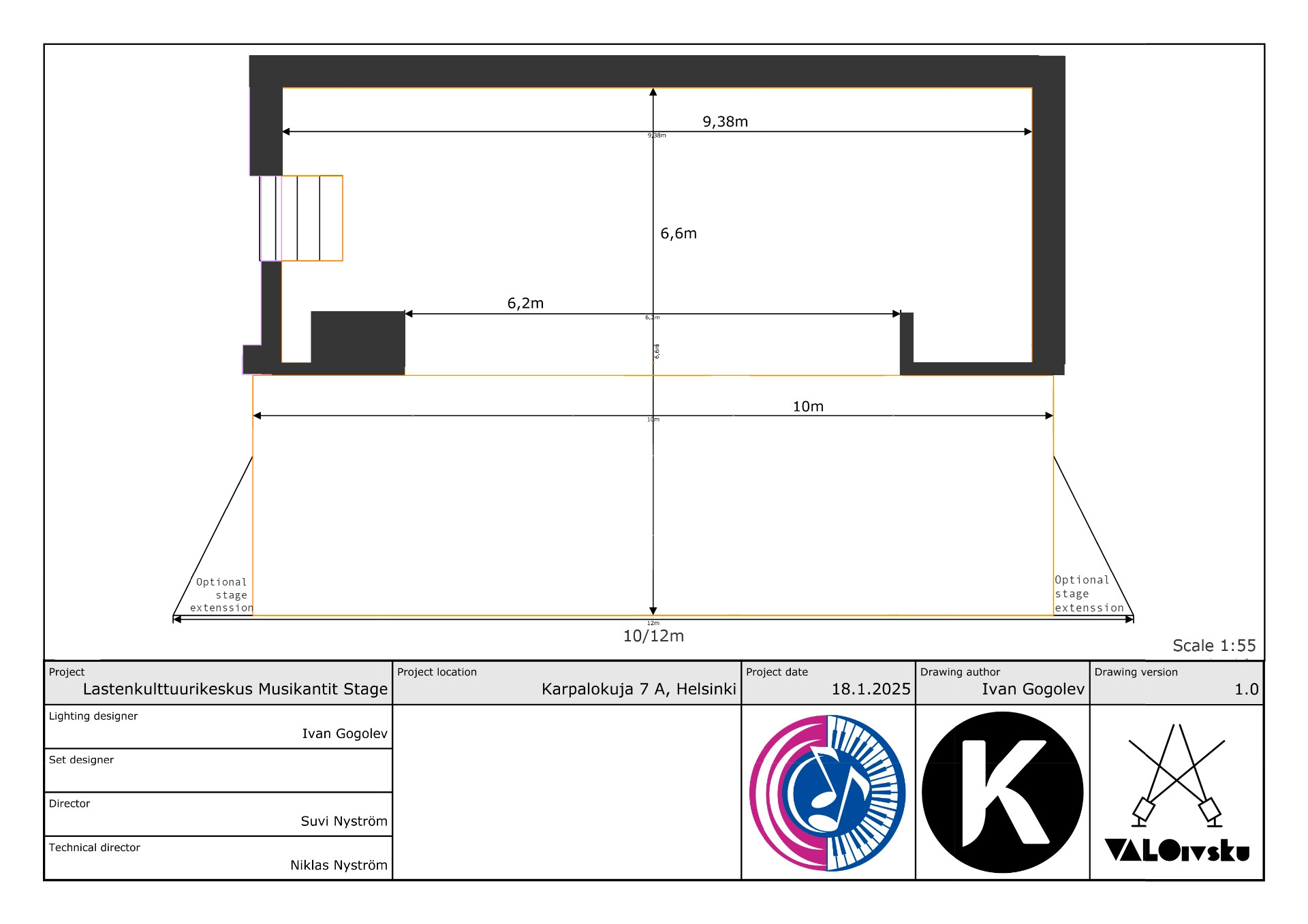

Stage

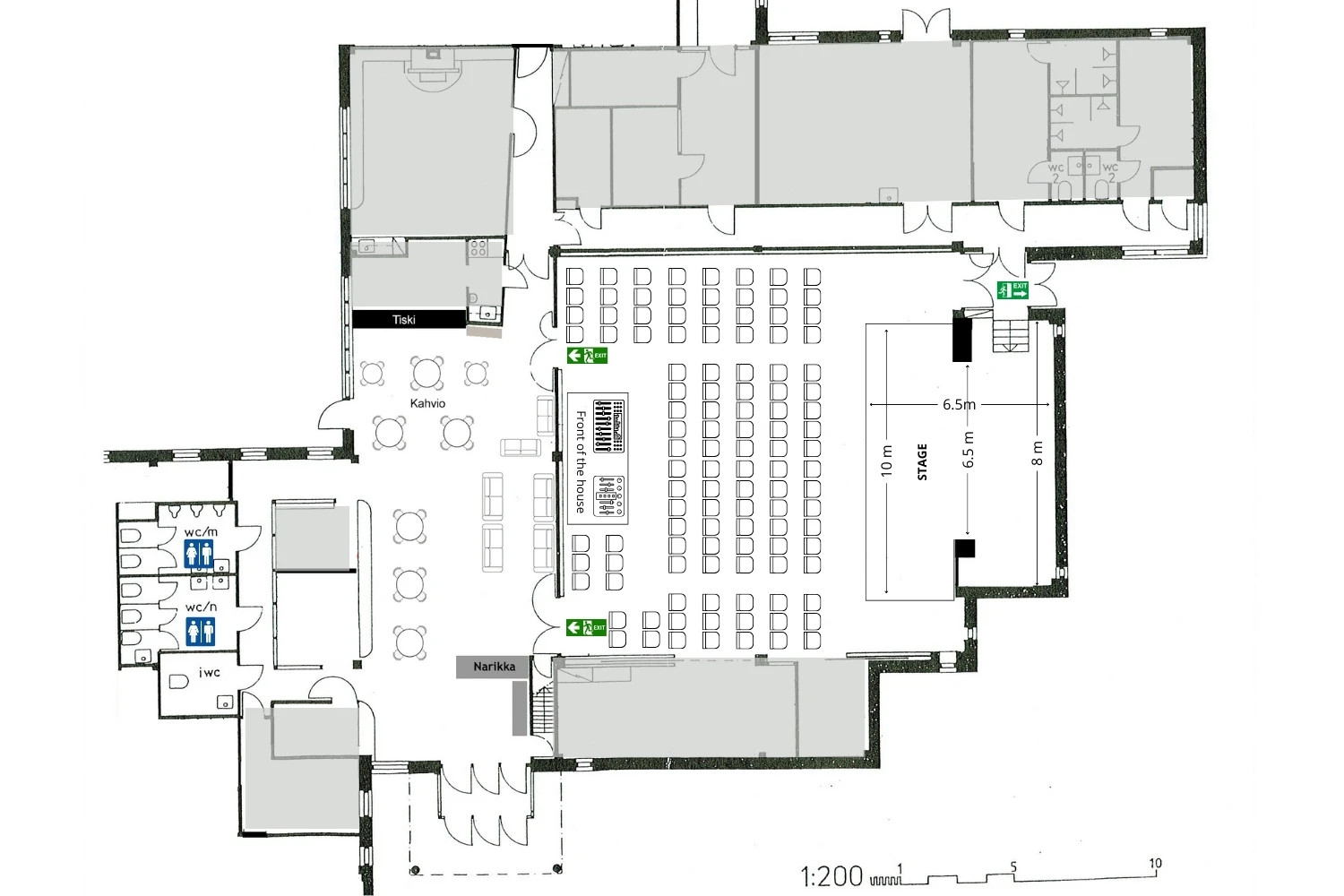

Premises

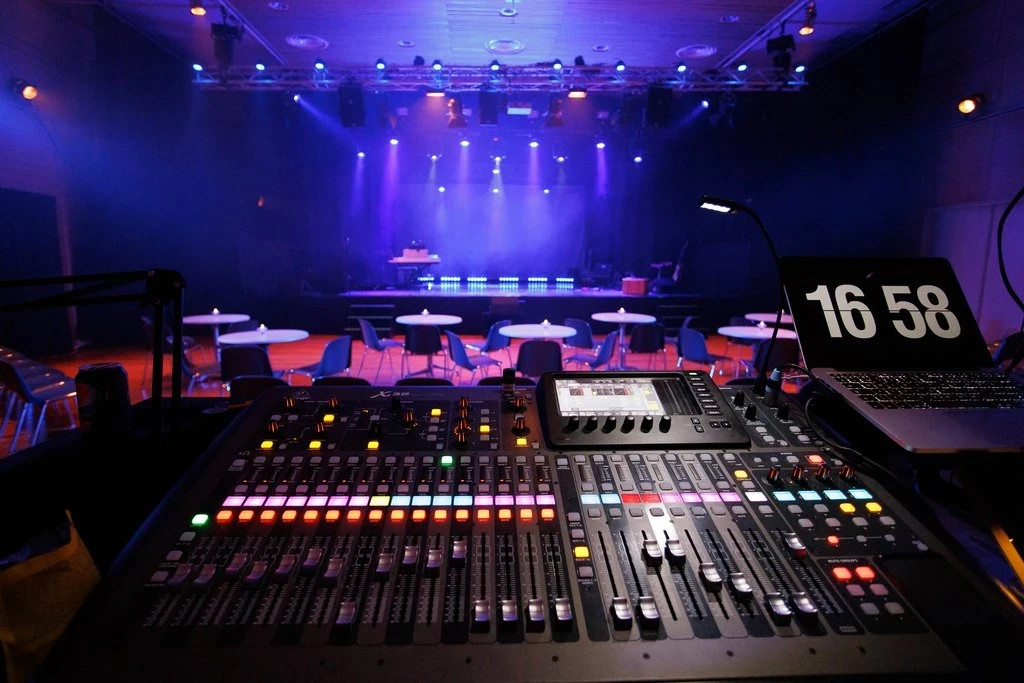

Mixer Front of the House

FOH mixer Behringer X32 digital mixer
  • 40-Input, 25-Bus Digital Mixing Console with 32 Programmable MIDAS Preamps, 25 Motorized Faders, Channel LCD's, 32-Channel Audio Interface and iPad/iPhone Remote Control
2 x Stagebox Behringer S16, 16 inputs, 8 outputs
  • I/O Box with 16 Remote-Controllable Midas Preamps, 8 Outputs and AES50 Networking featuring Klark Teknik SuperMAC Technology
Also available
Behringer X AIR XR18
  • 18-Channel, 12-Bus Digital Mixer for iPad/Android Tablets with 16 Programmable Midas Preamps, Integrated WiFi Module and Multi-Channel USB Audio Interface
Analog Mixers
  • Yamaha MG206 20-Input analog mixer
  • Yamaha MG10XUF 10-Input analog USB mixer

Loudspeakers

Main loudspeakers (Left, Center, Right):Subwoofer

Monitors
  • 3 x the box pro Mon A12, 350w
  • 2 x Sidefill speakers, the box PA 108 A, 80w, fixed position
Also available
  • 2 x Speakers, dB Technologies OPERA 515 DX, 400w
  • 2 x Speakers, Yamaha MSR-400, 400w
  • 2 x Subwoofers, dB Technologies SUB 05D, 800w

Wireless Mics

Handheld

  • 2 x Sennheiser EW 100 G4-835-S B-Band
  • 4 x Sennheiser XSw 35

Headset/Instrument

  • 12 x Sennheiser EW-D, Headset/Instrument
  • A selection of condenser and dynamic microphones

Lights

  • Lighting console, Chamsys MagicQ PC Wing Compact+PC
  • 6 x Front lights, De Sisti Leonardo 1kW fresnel, fixed position
  • 10 x Marin Mac250 Wash, moving head, fixed position
  • 4 x Marin Mac250 Entour, moving head, fixed position
  • 5x Martin RUSH MH 6 Wash, moving head, fixed position
  • Selection fresnel, profile, par64, and another lights
  • Selection of RGB Led PAR lights
  • Hazer and Smoke

See list of DMX channels (Google Sheets)

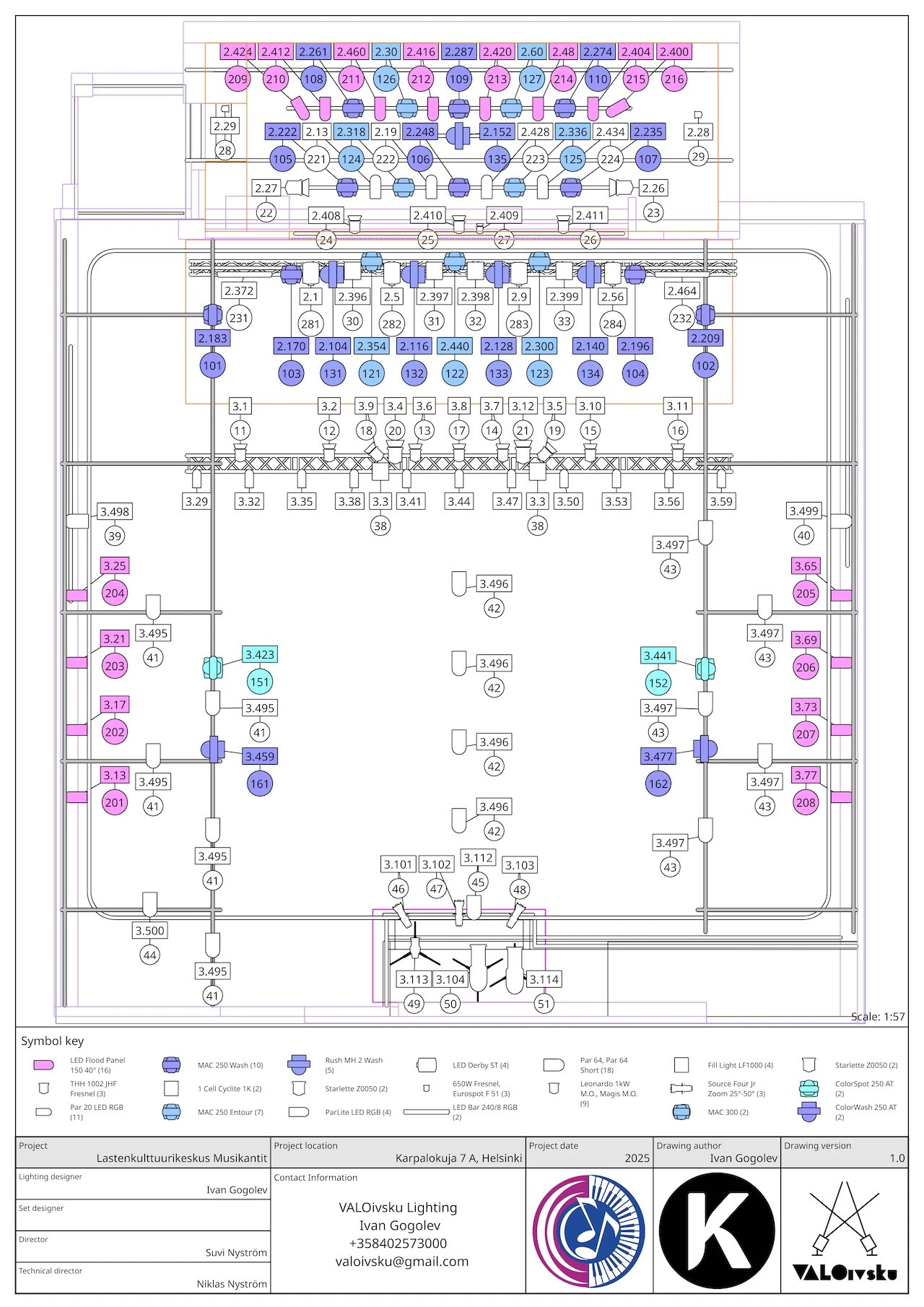

Lighting Plot PDF

More information please ask Ivan.Gogolev@musikantit.fi

Video

Motorized projection screen 5x5m

Optoma EH415

  • Resolution 1920x1080
  • HDMI, DisplayPort, VGA, S-video, Video
  • Brightness: 4200 ANSI Lumens
  • Contrast 12,000:1
  • Throw Distance 1.2 m - 10 m
  • Image Size 65 cm - 838 cm
  • Throw Ratio 1.37:1 - 2.09:1 (D:W)

NEC M403HG DLP

  • Resolution 1920x 1080
  • 2x HDMI, VGA, Video
  • Brightness: 4000 ANSI Lumens
  • Contrast: 10,000:1
  • Throw Distance 1.2 m - 7.6 m
  • Image Size 76 cm - 760 cm
  • Throw Ratio 1.2 - 2.04:1 (D:W)

Playback

Macbook Pro + QLab

Backline (on request)

Backline is available on reguest, additional cost may apply.

  • Pearl drumset (see below for detail)

  • Guitar Combo, Fender Frontman 212R 2-Channel 100-Watt 2x12"

  • Guitar Combo, Roland JC-55 Jazz Chorus 50-Watt, 2x8"

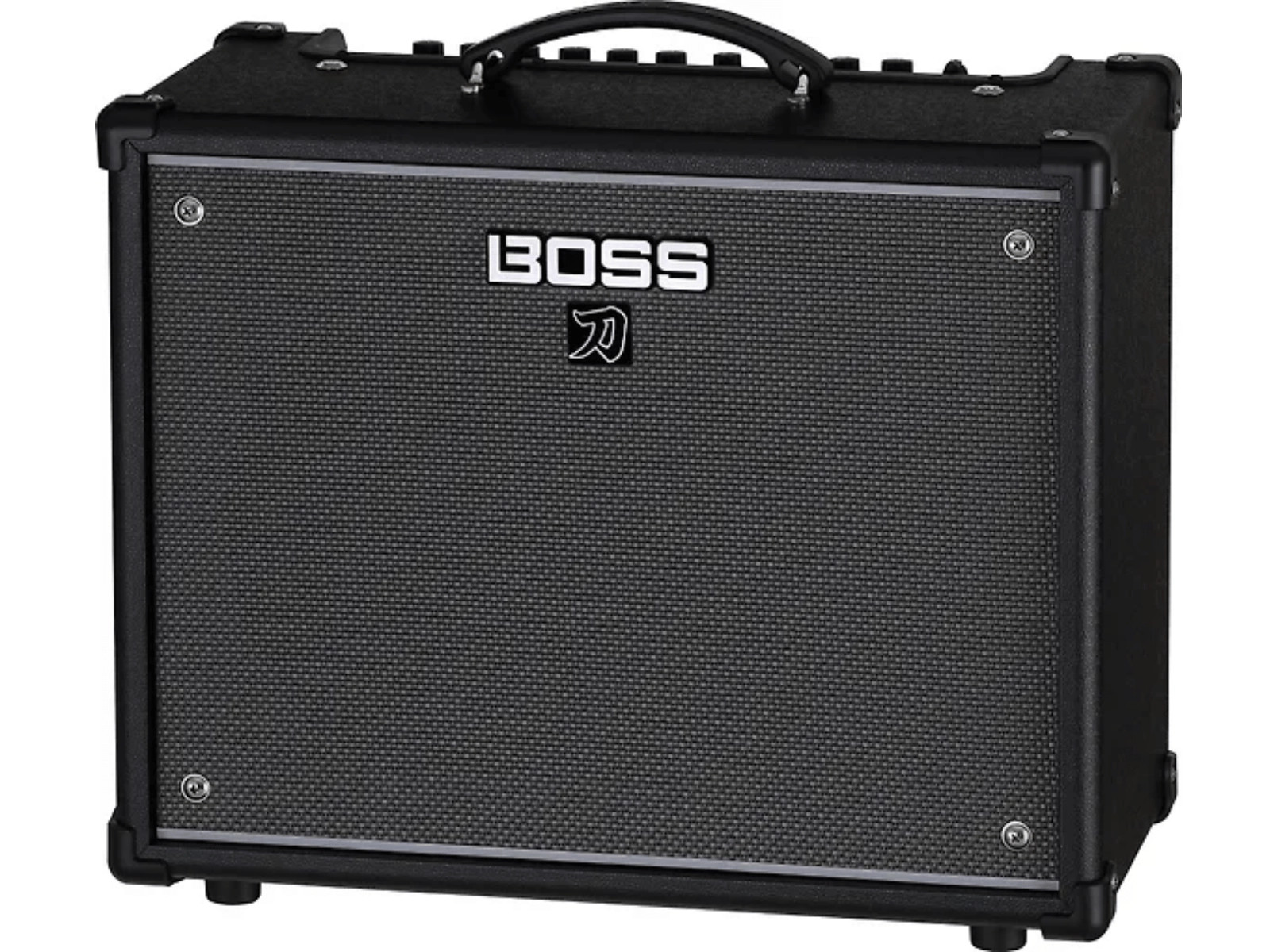

  • Guitar Combo, Boss Katana 50 MKII, 12", 50-Watt

  • Bass Combo, Fender Rumble 100, 100 Watts, 12"

  • Bass Combo, Hartke A100 Combo, 100 Watts

  • Roland RD-300SX Stage piano

  • Yamaha B1PE upright piano, black

  • Yamaha Bass guitar

  • Fender Sratocaster (USA 1991) guitar

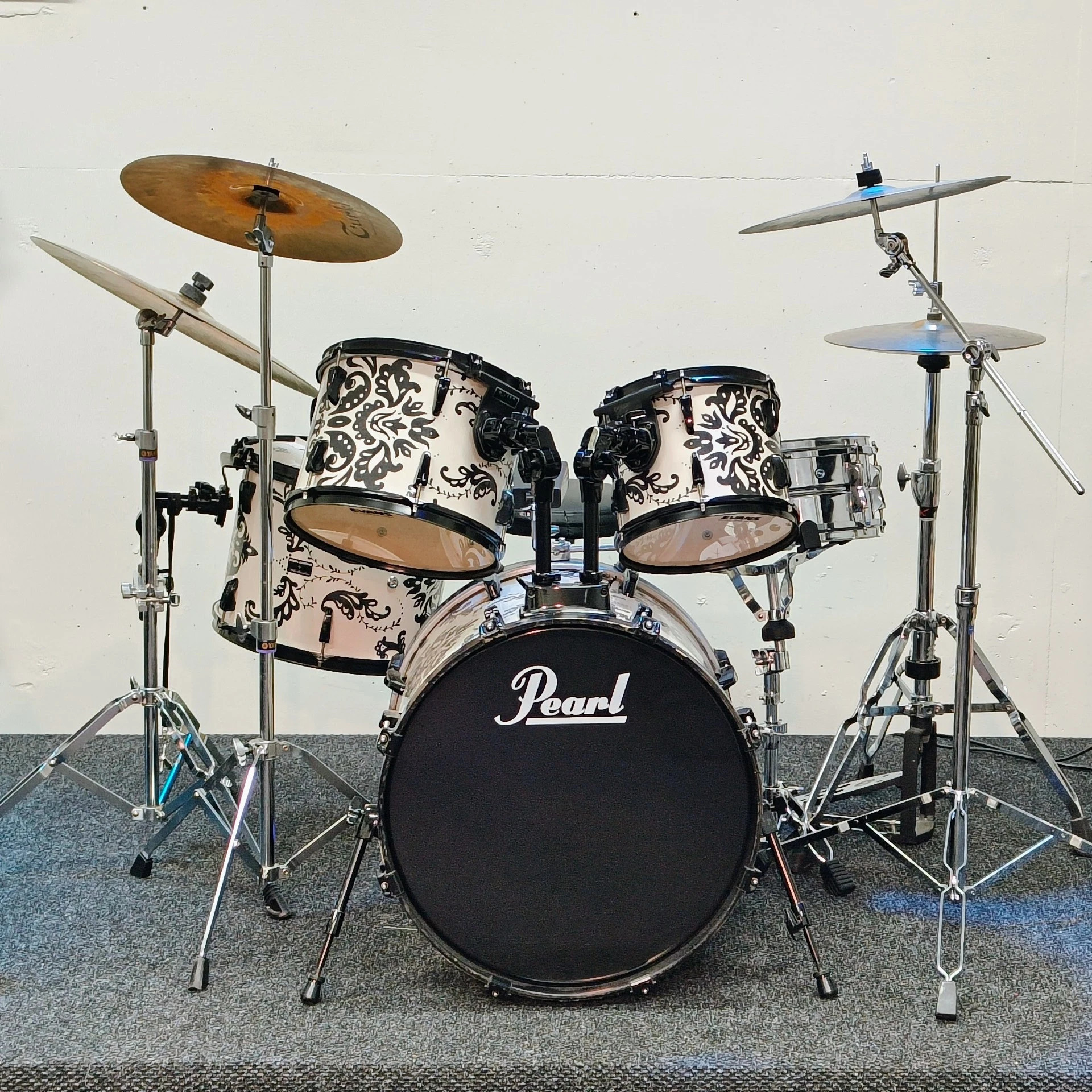

Drumset (on request)

Drumset is available on reguest, additional cost may apply.

Pearl -Custom (by Mika Brush) -drumset

  • Kick drum (20")

  • Snare drum (14")

  • Tom tom (10")

  • Tom tom (12")

  • Floor tom (14")

  • Tama Iron Cobra HP200PTW pedal

  • Hihat -Turkish moderate (14")

  • Ride -Turkish moderate (20")

  • Crash -Sabian (HHThinCrash) (16")

  • Crash -Turkish (HHThinCrash) (16")

  • Splash -Sabian B8X (12")

  • Cowbell
